1.2° Size 110mm High Torque Hybrid Stepping Motor J31115

Name: 12 Size 110mm High Torque Hybrid Stepping Motor J31115
Brand: Jingbo
Price: 1 USD

Place of Origin : Guangdong, China

Brand Name : Jingbo

Model Number : J31115

Certification : CE

Step angle(degree) : 1.2

Holding torque(N.m) : 12

Current(A/Phase) : 3.5

Delivery Time : in stock

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500pcs per week

MOQ : 1pc

Contact Now

1.2° Size 110mm High Torque Hybrid Stepping Motor J31115

General specifications

Stepping accuracy_5%
Temperature rise_80cMax
Ambient temperature_-20c~+50c
Insulation resistance_100MMin 500VDC
Dielectric strength_500V AC 1minute
Allowable radial load_0.06mm Max (450g load)
Allowable thrust load_0.08mm Max (450g load)

Specifications

Model	Step Angle ()	Length L(mm)	Holding Torque (N.m)	Current (A/Phase)	Power supply	Rotor inertia (Kg.cm²)	Weight (Kg)	Matched drive
J31112	1.2	124.5	8	2.5	AC220V3.5A	6	5	JB3220M
J31115		148	12	3.5	AC220V3.5A	9.72	6.6	JB3220M
J31118		182	16	3.75	AC220V3.5A	13.56	9	JB3220M
J31122		216	20	4	AC220V3.5A	11.1	11.1	JB3220M

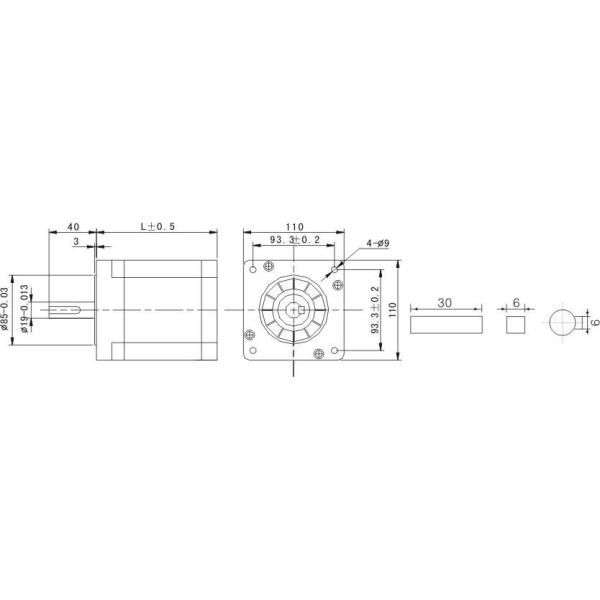

Dimension

1.2° Size 110mm High Torque Hybrid Stepping Motor J31115

Model	D(mm)	Note
J31112	19	Flat key 630
J31115	19	Flat key 630
J31118	19	Flat key 630
J31122	19	Flat key 630

Frequency-torque characteristics

1.2° Size 110mm High Torque Hybrid Stepping Motor J31115

Connections

1.2° Size 110mm High Torque Hybrid Stepping Motor J31115
